Valve test equipment

Home > Products > Vertical Valve Tester


Vertical Valve Tester

1. Applied Valve

GLOBE VALVE, GATE VALVE, BALL VALVE, BUTTER-FLY VALVE

2. Test Type

HYDRAULIC, SCREW

3. Capacity

10 - 1,500 TON

4. Equipment Organization

Test jig, Hyd&Water Controller, Water Tank (Option)

5. Application

Valve Body Strength Test, Sheet Leak Test

6. Hyd & Water Controller

· Water & Air

· Water Pressure : Air Driven Pump(HASKEL)

· Excellent in maintaining pressure and high in pump strength

· Jig : Supplied pressure settings function and Hyd pressure automatic
balancing function

· Compact Structure & Design

· Option : Gas(N2, He) test / Touch Screen ( Jig - Valve Size, Pressure Auto setting )

Test result save ( Conputer & Print out by program)

  • Valve test equipment

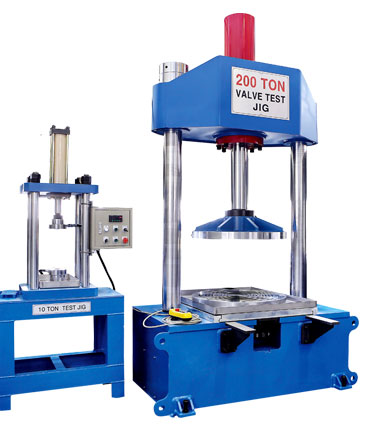

    Vertical Valve Tester
  • Valve test equipment

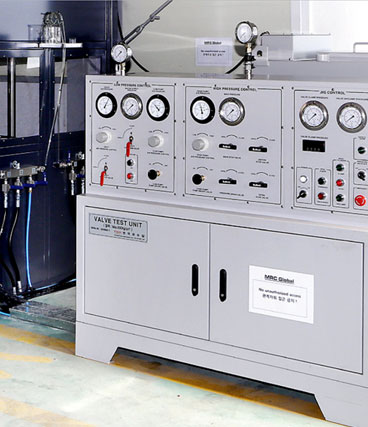

    Control panel
  • Valve test equipment

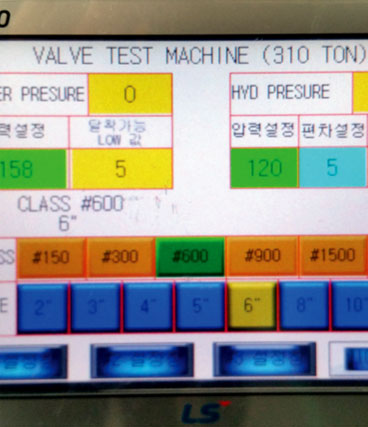

    Touch Screen
