Valve test equipment

Home > Products > Horizontal Valve

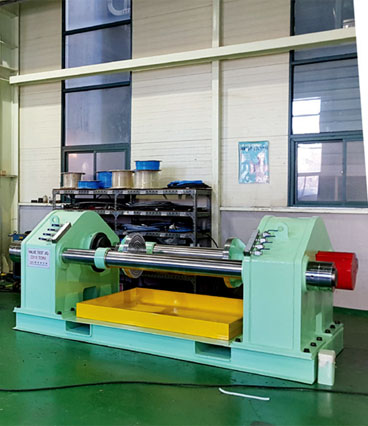

Horizontal Valve Tester

1. Applied Valve

GLOBE VALVE, GATE VALVE, BALL VALVE, CONTROL VALVE

2. Test Type

HYDRAULIC, SCREW, HYDRAULIC & SCREW

3. Capacity

10 - 1,500 TON

4. Equipment Organization

Test jig, Hyd&Water Controller, Water Tank (Option)

5. Application

Valve Body Strength Test, Sheet Leak Test

6. Hyd & Water Controller

· Water & Air

· Water Pressure : Air Driven Pump(HASKEL)

· Excellent in maintaining pressure and high in pump strength

· Jig : Supplied pressure settings function and Hyd pressure automatic
balancing function

· Compact Structure & Design

· Option : Gas(N2, He) test / Touch Screen ( Jig - Valve Size, Pressure Auto setting )

Test result save ( Conputer & Print out by program)

  • Valve test equipment
  • Valve test equipment
  • Valve test equipment
