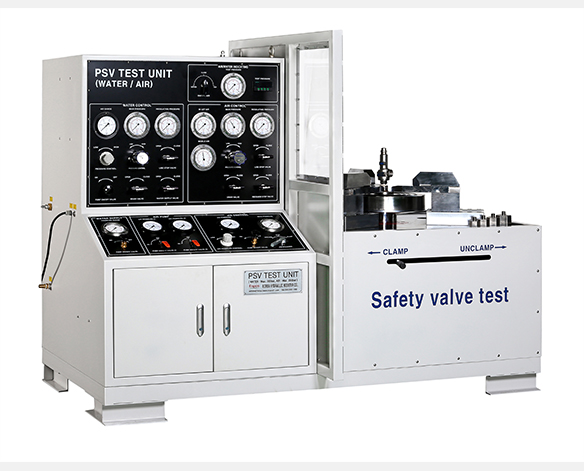

PSV test bench

  • Valve test equipment

    · Compact design

    · Test pressure : Max. 300bar

    · Air & Water

    · 1/2”-12” sizes valve

    · 3-jaw clamping system

    Valve test equipment
    Valve test equipment

Specefication

1. Test Medium

· AIR : Max. 200 bar ( 2900 psi )

· WATER : Max. 300 bar ( 4351 psi )

2. Size Ranges

· From 1/2” in-let to 12” in-let Flange type valves ( Higher sizes available on request )

· From 1/2” in-let to 2” in-let Screw type Valves

SIZE 1/2" 3/4" 1" 1 1/2" 2" 3" 4" 6" 8" 10" 12"
TEST PRESSURE 300 bar 280 bar 220 bar 110 bar 70 bar 48 bar 30 bar

3. clamp jig

· Clamping capacity : 40 ton

· 3-jaw, Piston loaded Auto Clamping unit for Quick & effortless clamping of valves.

4. Safety

· Safety Valves to protect against system over pressure

· Safety Screen to protect the operator from exposure to pressurized test media

5. Components

- Air Driven gas booster & Liquid pump

· Pressure regulating valve

· Gas receiver

· Stop valve & Drain valve

· Analog gauge & Digital gauge

· Stainess steel tube & fitting

6. Model

PART NO. TEST PRESSURE TEST VALVE UNIT SIZE NOTE
ENSV-A-200 AIR Max. 200 bar 1/2"-12" About
2520(W) x 1560(D)
x 1850(H)
Option available
on reguest
ENSV-W-300 WATER Max. 300 bar
ENSV-AW-200/300 AIR / WATER Max. 300 bar

7. Option

· Data recording device ( Program, Computer & Rack )
