Shop press

  • Hydraulic tools and system

    · Capacity : 20 ~ 200 TON

    · Stroke : 50 ~ 300 mm

    · Maximum pressure : 700 bar

    · Coupler : KTBC 381F(PT 3/8)

    Hydraulic tools and system

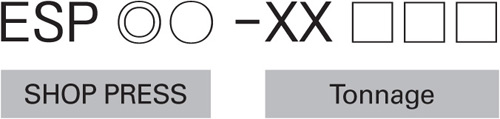

Ordering information

Hydraulic tools and system

1. ◎ = S-> single acting cylinder, D-> double acting cylind

2. ○ = H-> hand pump, F-> foot pump, M-> motor pum

3. □□□ = 50, 100, 150, 200, 250, 300-> choose the stro

4. Special size is available(optional).

EX) ESPSH-20100 : Single acting by hand pump Tonnage is 20ton, and stroke is 100mm.

Specification

Model Tonnage (ton) Detail Specification Demensions (mm)
A B C
ESP ◎ O-20 □□□ 20 ◎ : S or D
○ : H or F or M		 735 905 1105
ESP ◎ O-30 □□□ 30 ◎ : S or D
○ : H or F or M		 735 905 1105
ESP ◎ O-50 □□□ 50 ◎ : S or D
○ : H or F or M		 450 710 830
ESP ◎ O-100 □□□ 100 ◎ : D
○ : M		 450 710 830
ESP ◎ O-150 □□□ 150 ◎ : D
○ : M		 600 1040 1240
ESP ◎ O-200 □□□ 200 ◎ : D
○ : M		 600 1040 1240
  • Hydraulic tools and system

    1) Mortor pump (M)

    · Power : 1~ 5HP

    · Pmax : 700 bar

    · Voltage : 220V 3Ph 50/60 Hz

    · Oil capacity : 4-10 L / P.27

    2) Hand pump (H)

    · Oil capacity : 1500-2500 cc

    · Pmax : 700 bar / P.22

    3) Foot pump (F)

    · Supply air : 7 bar

    · Pmax : 700 bar

    · Oil capacity : 1.5-2.5 L / P.24

Description

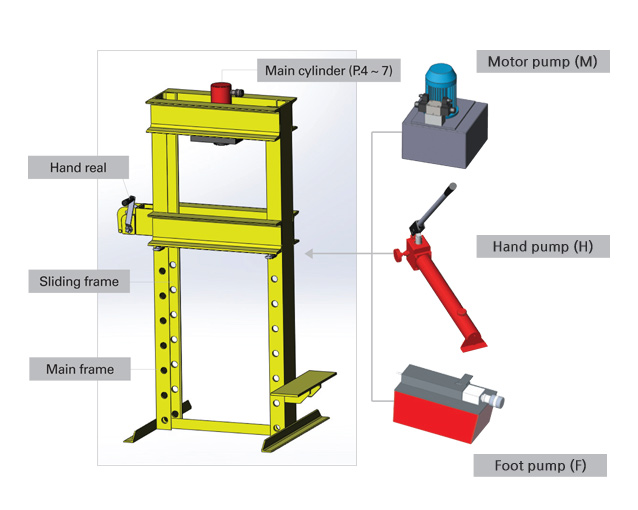

Enpos shop press is including main frame, sliding frame, hand rill (to move frame), and main cylinder.

In addition customer can add the hyd power pack, motor pump, hand pump, or foot pump optionally.

Model Demensions (mm) I
D E F G H
ESPM ◎ O-20 □□□ 300 295 1322 172 1930 Cylinder
Stroke
ESPM ◎ O-30 □□□ 300 295 1322 172 1930
ESPM ◎ O-50 □□□ 250 325 1325 305 1960
ESPM ◎ O-100 □□□ 130 325 1325 305 1960
ESPM ◎ O-150 □□□ 150 530 980 315 1775
ESPM ◎ O-200 □□□ 150 530 980 315 1775
