Gas booster & Air amplifier unit

Why Use a Haskel Gas Booster?
Haske pneumatic and hydraulic driven gas boosters offer a flexible and efficient source for delivering high pressure gases.

Oxygen or High Purity Cleaning : Haskel boosters are noted for their cleanliness and can handle pure gases such as oxygen without risk of any contamination.
(Special cleaning required –- advise factory.) Haskel’'s oxygen cleaned products are certified per Mil Spec 1330.

Multi-Staging Capability : For higher flow rates and pressures, beyond the capability of a single gas booster,
one or more boosters of the same ratio may be plumbed in parallel and then in series with one or more boosters of the same ratio.

High Flow Rates at High Pressures : When high flow rates at high pressures are needed, the booster can charge a receiver to an even higher pressure level,
thus storing a volume of gas available for rapid release at a constant pressure through a pressure reducing valve.

Cost Savings : Most industrial gases are commonly delivered at pressures of 2,000–2,600 psi in steel cylinders. If the gas is to be used well below the supply pressure,
the pressurized supply is easily piped and controlled to the point of use with simple valving. However, if the end use requires the gas to be used at higher pressures than
the supply it will have to be boosted. Gas Boosters can utilize all the gas from a supply source such as cylinders, and boost the gas to whatever pressures (and flows)
are required by the application; thus utilizing all the gas volume from the supply source.

  • High pressure test system

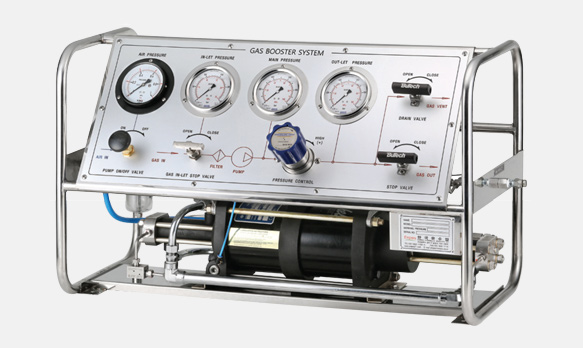

    Gas booster unit

    · Air driven type

    · Possible for AIR, N2, He, Ar and Special gas

    · Including pressure regulator

    · Please contact the manufacturer for any other specifications.

    · Size / 900(W)×400(D)×550(H)

MODEL TYPE SPECIFICATION Supply Pressure (㎏/㎠) DRIVEN AIR (㎏/㎠)
Working Pressure (㎏/㎠) MAX. Flow (l/min)
KAG-15H-SS H : Standard

HC : Including casters
(CASTER)
10~100 400 10~120 1~10.3
KAG-30H-SS 10~210 300 10~120
KAG-75H-SS 10~420 150 10~120
KAG-152H-SS 10~700 90 10~120
KAGT-7/15H-SS 10~100 300 10~30
KAGT-15/30H-SS 10~210 300 10~70
KAGT-32/62H-SS 10~420 350 10~120
KAGT-62/152H-SS 10~700 200 10~120
  • High pressure test system

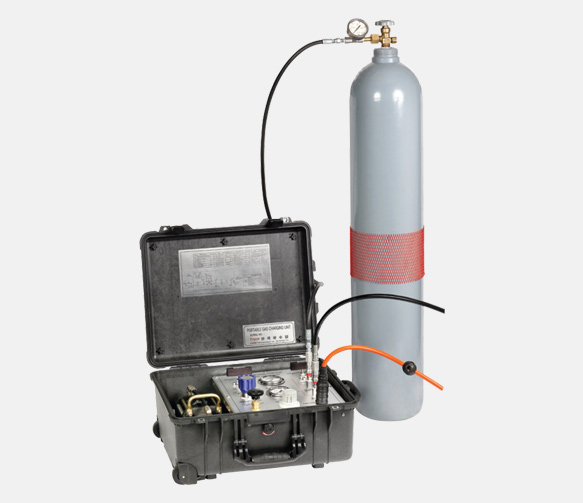

    Portable nitrogen test unit

    · Haskel air driven gas booster

    · Air in-let to air drive controls comprising

    · Air in-let to air drive filter

    · Air in-let to air drive pressure regulator

    · Air in-let to on/off speed control valve

    · In-let 10 micron gas filter

    · In-let pressure gauge

    · Pressure regulator

    · Out-let pressure gauge

    · Out-let relief valve

    · Out-let isolation valve & vent valve

    · In-let gas hose : 2m

    · Out-let gas hose : 5m

MODEL OUT-LET SIZE WEIGHT
MAX. PRESSURE MAX. Flow
EN-4AG-25-C 175 BAR 50nl/min 560×455×265H 18kg
EN-AG-30-C 210 BAR 500nl/min 630×500×302H 28kg
EN-AG-75-C 420 BAR 250nl/min 630×500×302H 28kg

The illustrated Portable booster systems are designed to be lihgtweight and practical. Clearly labelled controls to ensure safe operation.
The units provides an infinitely adjustable pressure source, for pressure testing with nitrogen gas both onshore and offshore.
Charge gas pressure up to 400bar are standard, but higher presssure can be achieved if required.

Appropriation

  • High pressure test systemHigh pressure test system
    Operating in any location

  • High pressure test system
    Gas charging
  • High pressure test system
    Leak test
  • High pressure test system

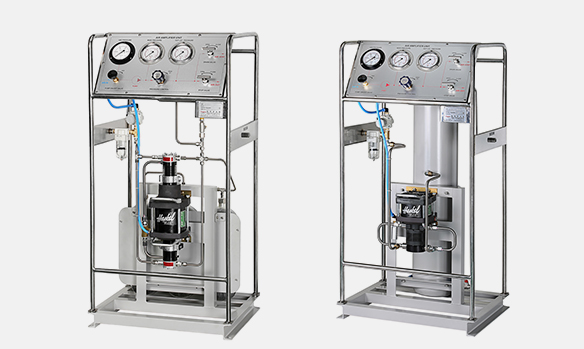

    Air amplifier unit

    · Air driven type

    · Including pressure regulator

    · Please contact the manufacturer for any other specifications.

    · Size / 650(W)×650(D)×1315(H)

MODEL TYPE SPECIFICATION DRIVEN AIR (㎏/㎠)
Working Pressure (㎏/㎠) MAX. Flow (l/min)
KHA-AAD-2H Air Storage

Standard : 40.2 liter

Option : 20 liter
7~14 1,600 1~10.3
KHA-AAD-5H 7~35 600
KHA-AAD-15H 7~100 160
KHA-AAD-30H 7~200 80
KHA-AAD-7/30H ※ Excluding Air strorage 7~220 160
