Home > Products > Air driven

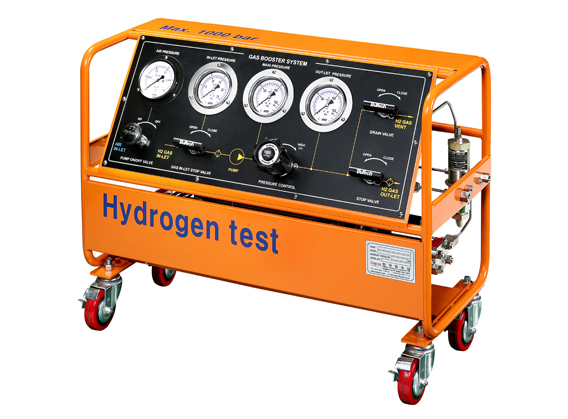

· Safe Operation with Optimal Performance Designed with precipitation
hardened stainless steel gas barrels, and high pressure gas seals for optimal
seal performance at pressure ranges above 5,000 psi(345 bar).
· Features and Benefits
- Vent ports combined into one outlet for safe operation with Hydrogen
- Gas barrels are dates stamped for recommended 7-year replacement
- Supplied with Test Certification
- Integrated systems available
| Model | TYPE | SPECIFICATION | H2 Sypply Pressure (kg/cm2) |
DRIVEN AIR (kg/cm2) |
|
|---|---|---|---|---|---|
| Working Pressure (kg/cm2) |
MAX. Flow (l/min) |
||||
| KAG-75H-H2 | H: Standard HC: including casters |
10~420 | 150 | 10~120 | 1~10.3 |
| KAG-152H-H2 | 10~700 | 90 | 10~120 | ||
| KAGT-7/15H-H2 | 10~100 | 300 | 10~30 | ||
| KAGT-15/30H-H2 | 10~210 | 300 | 10~70 | ||
| KAGT-32/62H-H2 | 10~420 | 350 | 10~120 | ||
| KAGT-62/152H-H2 | 10~700 | 200 | 10~120 | ||
