Home > Products > Hydraulic Pump Motor
· Motor Power: 1/3 HP
· Max Operating Pressure: 700bar
· Voltage: 220V 1ph 50/60Hz
· Reservoir Capacity: 0.8-1.6 liters
· Light weight, Compact design for easy portability.
· The most ideal product to prevent any injury
which can be occurred by using hand pump.
· Enable to maximize the efficiency of work.
· Various models can be used with the most of hydraulic tools.
· Can be used anywhere and under any condition with oil-tight tank.
· Enable to be used for Hydraulic cylinder, Puncher,
Puller, Bender. Cutter. and Hydraulic Press.
· 220V Single phase is standard.
· Can be used for every electric tools.
| Model | Flow Rate (l/min) | Pressure Rating (bar) | Reservoir Capacity (liter) |
Weight (kg) | ||
|---|---|---|---|---|---|---|
| Low | High | Low | High | |||
| KUP-35RH | 2 | 0.2 | 10 | 700 | 0.8 | 7.5 |
| 1.6(L) | 8.5(L) | |||||
| Model | Function | Weight (kg) |
|---|---|---|
| KUP-35RH-NC(L) | Pressure hold type. Cylinder can be stopped on forward action. Cylinder cannot be stopped on retraction. |
7.5 |
| KUP-35RH-NO(L) | While on switch is pressed, pump is running. With optionally incorporated pressure switch, cylinder can be stopped at set pressure and |
7.5 |
| KUP-35RH-IN(L) | Cylinder can be stopped both on forward action and retraction. |
7.5 |
· Motor Power: 1/2 HP
· Max Operating Pressure: 700bar
· Voltage: 220V 1ph 50/60Hz
· Reservoir Capacity: 2-4 liters
· Light weight, easy to carry for maximum portability.
· Enable to maximize the efficiency of work.
· Can be applied to load of around 100ton.
· Enable to be used for Hydraulic tools.
| Model | Flow Rate (l/min) | Pressure Rating (bar) | Reservoir Capacity (liter) |
Weight (kg) | ||
|---|---|---|---|---|---|---|
| Low | High | Low | High | |||
| KUP-45SVG(L) | 2.5 | 0.35 | 70 | 700 | 2 | 18 |
| 4(L) | 20(L) | |||||
| Model | Function | Weight (kg) | |
|---|---|---|---|
| Single Acting | KUP-45SVG-4(L) | A singled-acting cylinder is actuated by solenoid valve. |
17.2 |
| Double Acting | KUP-45SVG-7(L) | A double-acting cylinder is actuated by 4 way manual valve. |
16.1 |
| KUP-45SVG-8H(L) | A double-acting cylinder is actuated by solenoid valve. The cyliner can not be stopped, and pressure can not be hold. |
18.5 | |
| KUP-45SVG-8WP(L) | A double-acting cylinder is actuated by solenoid valve. |
19 | |

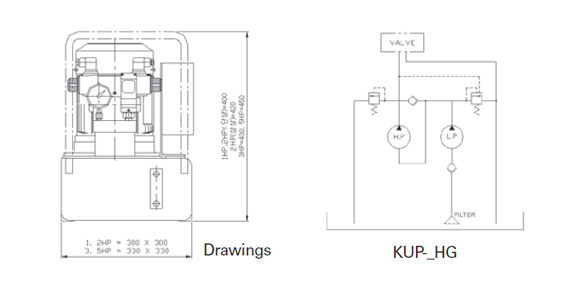

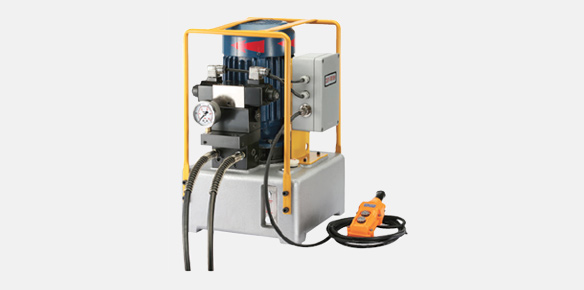

· Motor Power: 1, 2 , 3, 5 HP
· Max Operating Pressure: 700bar
· Voltage: 220V 3ph 50/60Hz
· Reservoir Capacity: 10-15 liters
· Can be used for industrial purpose.
· Various models can be used with the most of hydraulic tools.
· Quite smooth operation (80dB)
· We guarantee the best quality.
| Model | Power | Flow Rate (l/min) | Pressure Rating (bar) | Tank (liter) | Weight (kg) | ||
|---|---|---|---|---|---|---|---|
| Low | High | Low | High | ||||
| kup-753 | 1HP | 4.5 | 0.6 | 70 | 700 | 10 | 50 |
| kup-1503 | 2HP | 13 | 1.05 | 70 | 700 | 15 | 85 |
| kup-2203 | 3HP | 13 | 1.7 | 70 | 700 | 15 | 85 |
| kup-3503 | 5HP | 9 | 3 | 70 | 700 | 10 | 68 |
| Model | Function | |
|---|---|---|
| Single Acting | KUP_-HG-4(L) | A singled-acting cylinder is actuated by solenoid valve. "Advance" with ON switch depressed and the
motor running. |
| Double Acting | KUP_-HG-7(L) | A double-acting cylinder is actuated by 4 way manual valve. |
| KUP_-HG-8H(L) | A double-acting cylinder is actuated by solenoid valve. The cyliner can not be stopped, and pressure can not be hold. |
|
| KUP_-HG-8WP(L) | A double-acting cylinder is actuated by solenoid valve. |
|
